Rechargeable 2.4Ghz Wireless Camera

www.pdf24.org    Send article as PDF
I brought this Hamy, 2.4Ghz Wireless 1/3 Sony CCD Rechargeable Camera to use with my Robots. It has a Sensitivity: of 0.5 Lux at F1.2, which makes it great for low-light conditions. As can bee seen from the Video made with just the light coming through a doorway  into a large room, its sensitivity is EXCELLENT!

Hamy C-600 Wireless Camera

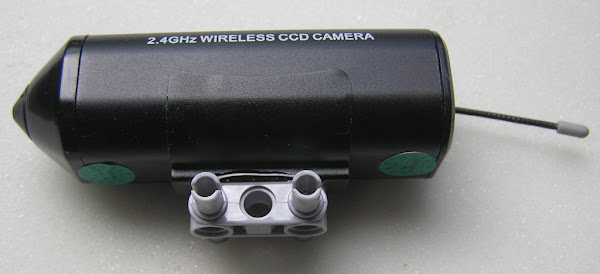

Hamy C-600, 2.4Ghz Wireless Camera with Lego Technics Mount

I found the Camera & Receiver on eBay for US$93.00 & was assured I could get a refund if I wasn’t a 100% happy. There was an issue with posting from mainland China, so the eBayer resent it from Hong Kong without any prompting from me & it was kept informed of it’s progress.



[youtube]AzyOko-yI9k[/youtube] The Hamy C-600, 2.4Ghz Wireless Camera Test



It’s of Excellent Quality & I was Really Suprised with both Build & Picture Quality of this Camera! The USB Receiver Unit which came with it was also excellent quality & even WORKS WITH LINUX!!! The USB Receiver also as an Composite A/V Input as well.

You can find the Camera here: http://shop.ebay.com/?_from=R40&_trksid=m570&_nkw=2.4G+Wireless+Sony+CCD+Pinhole+Color+CCTV+Camera.

Camera Specification:

  • System: NTSC / PAL
  • Sync. Mode: PAL 50Hz NTSC 60Hz
  • Pickup: 1/3 SONY CCD
  • Picture Element: 512×492 (NTSC) 512×582 (PAL)
  • Horizontal Resolution: 480TVL
  • Sensitivity: 0.5Lux/F1.2
  • S/N Ratio: >=48dB
  • Lens: 3.6*2.7mm
  • Video Output: 1.0VP-P 75ohm
  • Frequency: CH1=2410Mhz, Ch4=2432Mhz, Ch5=2450Mhz, CH4=2468Mhz
  • Sound Modulation Frequency: 6.0Mhz
  • AC-DC Adapter:+5V (DC), 1000mA
  • Battery Capacity: 450mAh
  • Unobstructed Effective Range Reaches: 30-100M
  • Dimensions (W*L*H): 78mm*22mm*22mm

You can find the USB Reciever here: http://shop.ebay.com.au/i.html?_nkw=Wireless+2.4GHz+USB+DVR+CCTV+Camera+Recorder+4+Channel.

Receiver Specification:

  • Wireless USB DVR.
  • 4-channel 2.4GHz wireless video/audio.
  • Capture images 30 frames per second.
  • Record file format AVI and play with Windows Media Player.
  • USB 2.0 interface,transmission rate up to 480Mpit/s,48times.>
  • Fluency video display,720*576 image up to 30 frames/s.
  • Moving image display upto 1440*1152.
  • Sharp and nature image with true color.
  • Advanced digital video control function.

You can email Lee Liangyan for more information on both the Camera & Reciever.

All that’s left now to do is design/build a Lego NXT Mindstorms Robot to put the Hamy C-600 Camera through its paces.
